The CK32A3 multifunctional lathe offers customizable configurations to suit different production requirements for parts, including turning and milling composite lathes or dual-spindle CNC turret lathes. Its design incorporates an additional Y-axis and side milling power head or cross-sectional power head on the drag plate, catering to both turning and milling composite processing needs. Additionally, an auxiliary spindle can be installed on the small drag plate, along with a Y-axis, auxiliary spindle tool holder, and cut-off tool holder on the side of the machine's main spindle box. This design enables automatic operation interchange and dual-process machining. When outfitted with an automatic feeding machine, the lathe can achieve fully automated processing.

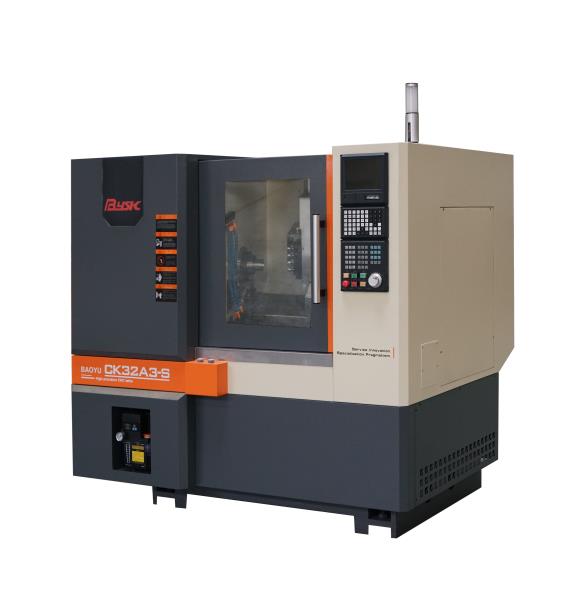

The CK32A3 multifunctional lathe

Power Head Tooling (Optional)                            ER20

Power Head Servo Motor Power                         0.75kw

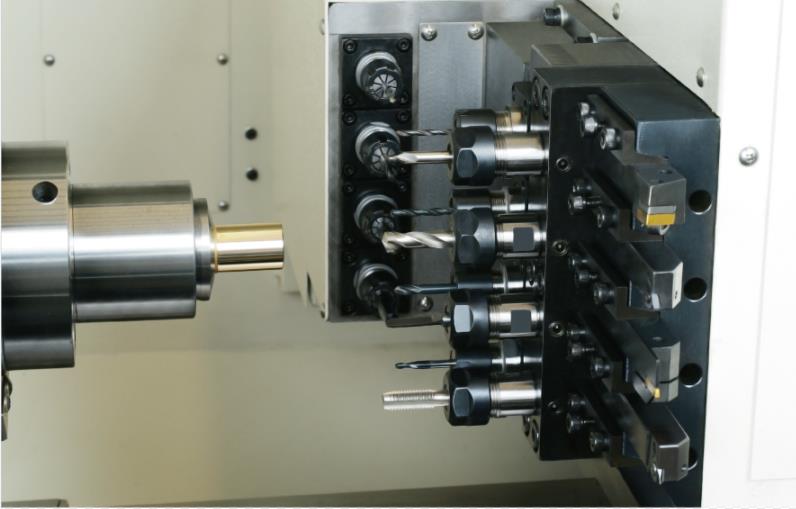

●Precision C-axis indexing, power head meets the needs of turning and milling compound processing.

●High cost-performance ratio and excellent after-sales service.

The CK32A3-B multifunctional lathe

Sub-spindle through-hole diameter                           20mm

Sub-spindle servo motor power                                 2kw

Sub-spindle maximum speed                                     4000r/min

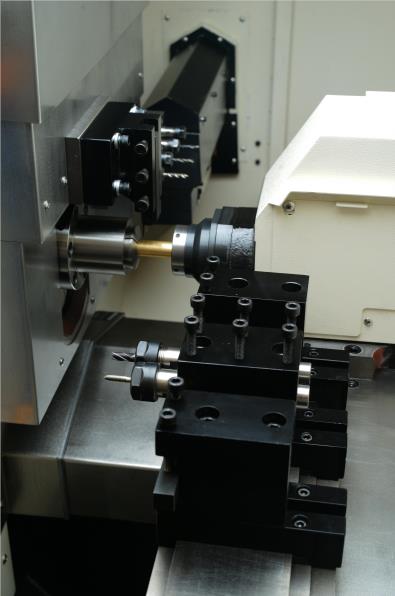

●High-speed synchronized rotation between the main spindle and sub-spindle, solving the problem of two-step processing with a single clamping.

●Add a sub-spindle tool holder and cut-off tool holder on the side of the main spindle box.

●Equipped with an automatic feeder to achieve fully automatic processing, saving labor.
